Raspberry Pi 4 model B

Announced on 24th June 2019 (announcement). The Raspberry Pi 4 is a new Pi design, with ethernet + USB ports swapping positions from previous models. In addition, the 4 has three variants, only differing in amount of RAM: 1/2/4GB models, selling for $35/45/55.

The new version of the 4B with the same board but supporting 8GB of LPDDR4 SDRAM was announced on 28th May 2020.

The BCM2711 chip use on Raspberry Pi 4 can address up to 16GB of LPDDR4 SDRAM.

Specifications

  • Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.8GHz
  • 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on model)
  • 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
  • Gigabit Ethernet
  • 2 USB 3.0 ports; 2 USB 2.0 ports.
  • Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
  • 2 × micro-HDMI® ports (up to 4kp60 supported)
  • 2-lane MIPI DSI display port
  • 2-lane MIPI CSI camera port
  • 4-pole stereo audio and composite video port
  • H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
  • OpenGL ES 3.1, Vulkan 1.0

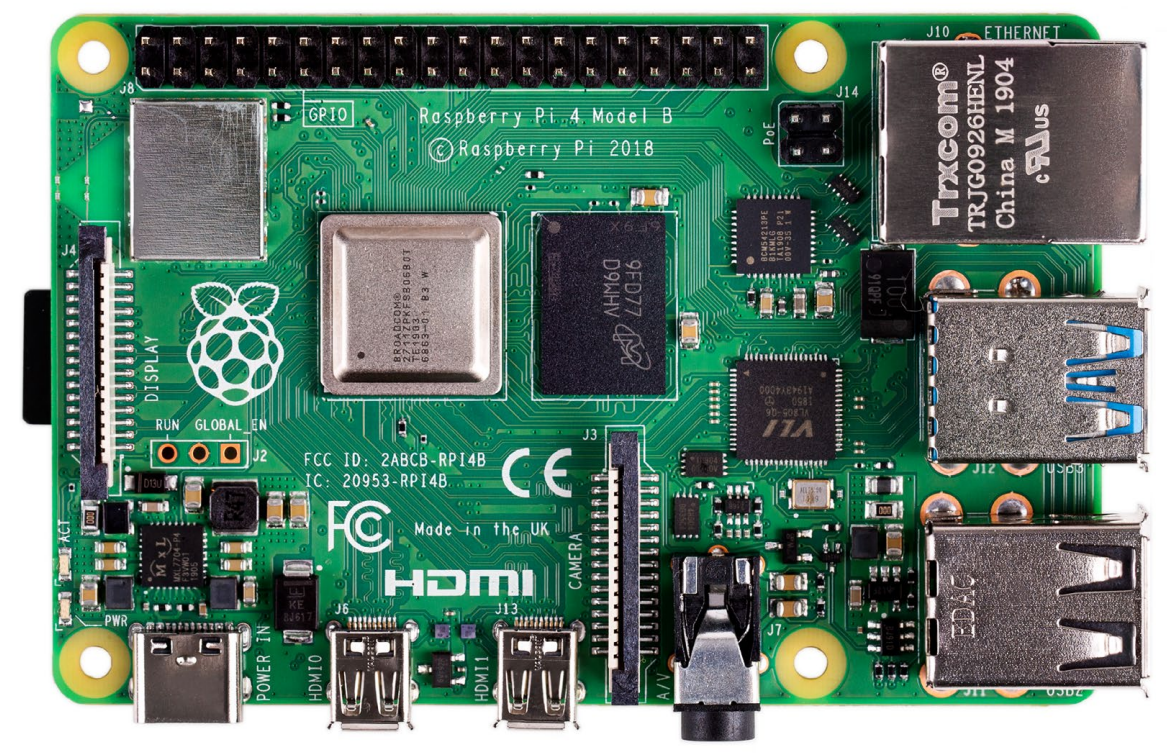

Raspberry Pi 4 model B

Raspberry Pi 4 on sale now from $35 8GB Raspberry Pi 4 on sale now at $75
